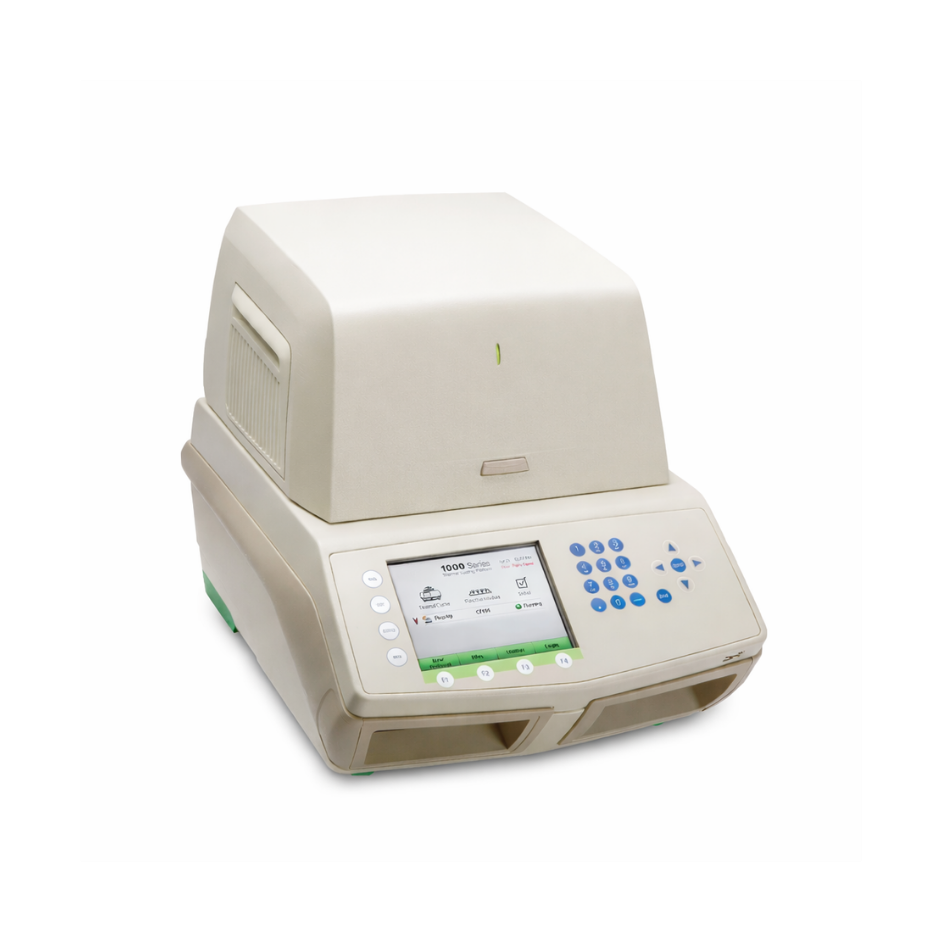

Real Time PCR

Fast, Reliable, and Multiplex Real-Time PCR Solution

A real time PCR system is an advanced molecular biology instrument used for amplifying and simultaneously quantifying nucleic acids (DNA/RNA) in real time. This real time PCR system combines thermal cycling, fluorescence detection, and powerful data analysis to deliver precise and reproducible results.

The real time PCR instrument enables researchers to monitor PCR amplification as it happens, making real time PCR essential for applications such as gene expression analysis, pathogen detection, mutation studies, and quantification of genetic material.

In addition, a real time PCR system ensures high sensitivity, fast cycling, and excellent thermal uniformity. Therefore, laboratories rely on real time PCR technology for accurate quantitative analysis and consistent performance in research and diagnostics.

Features:

• Real-time amplification and detection of DNA/RNA.
• High thermal uniformity for consistent results.
• Multiple fluorescence detection channels for multiplex assays.
• Fast ramp rates for shorter run times.
• User-friendly touch-screen interface with intuitive software.
• Automatic data analysis and export in multiple formats.
• Compact design suitable for all laboratory setups.
• USB and LAN connectivity for easy data transfer.

Specifications:

• Temperature Range: 4°C to 100°C
• Temperature Accuracy: ±0.2°C
• Heating/Cooling Rate: Up to 5°C/sec
• Detection System: Photodiode/CCD-based fluorescence detection
• Channels: 4–6 multiplex fluorescence channels
• Reaction Volume: 10–100 µL
• Sample Capacity: 96 wells (0.2 mL tubes or plate)
• Display: 7" color LCD touchscreen
• Connectivity: USB, Ethernet, optional Wi-Fi
• Power Supply: 220–240 V AC, 50 Hz
• Software: Compatible with Windows OS; supports real-time quantification, melt curve, and endpoint analysis
