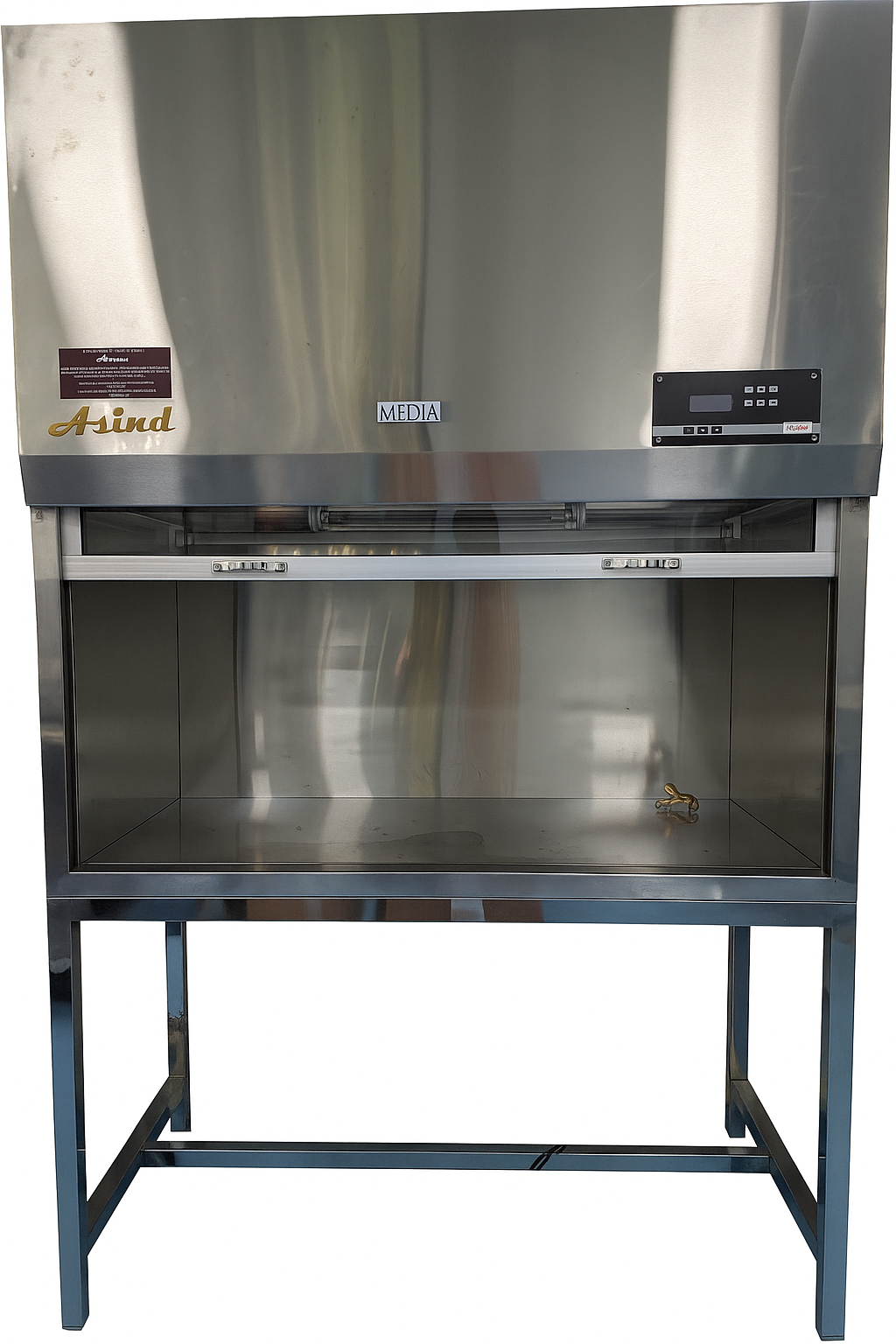

Laminar Air Flow (LAF) Cabinet

A Laminar Air Flow (LAF) Cabinet is a laboratory workstation designed to provide a sterile and particle-free working environment by directing filtered air in a uniform laminar flow across the work surface. It protects samples and processes from contamination, making it ideal for applications in microbiology, tissue culture, pharmaceutical preparation, electronics, and research laboratories. The cabinet ensures clean air by utilizing HEPA filters that remove 99.97% of particles ≥0.3 μm.

Features:

• Uniform, unidirectional airflow to maintain a contamination-free workspace
• High-efficiency HEPA filtration for removal of 99.97% of particles ≥0.3 μm
• Sturdy stainless steel construction for durability and easy cleaning
• Integrated UV germicidal lamp for work area sterilization
• Fluorescent lighting for clear visibility
• Ergonomic design for comfortable operation during extended work hours
• Low-noise blower system for minimal disturbance in the lab
• Digital display/control for airflow and UV operation
• Optional adjustable front sash for added safety and protection

Specifications:

• Material: Stainless Steel (SS 304 grade)
• Air Filtration: HEPA filter, 0.3 μm, 99.97% efficiency
• Airflow Type: Vertical or horizontal laminar flow (model dependent)
• Air Velocity: 0.3–0.5 m/s (uniform across the work area)
• Lighting: Fluorescent + UV germicidal lamp
• Noise Level: < 60 dB
• Power Supply: 230 V AC, 50 Hz
• Work Surface Size: 900 × 600 mm (standard, customizable)
• Applications: Microbiology, pharmaceuticals, tissue culture, electronic
